Furuno

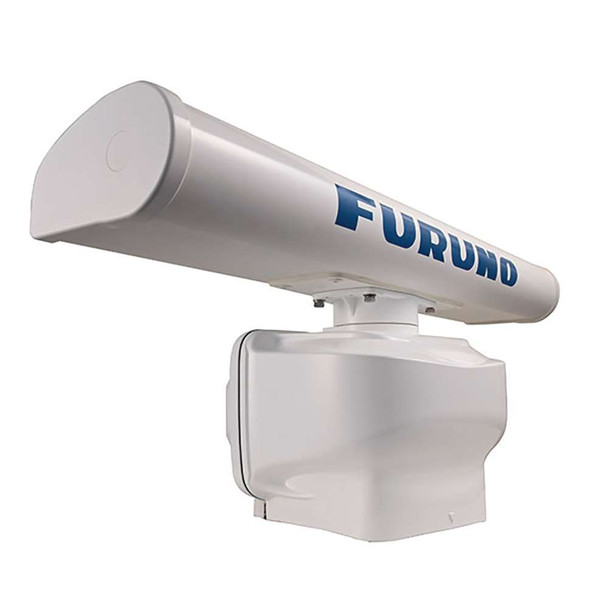

Furuno DRS12AX 12kW UHD Digital Radar w/Pedestal 15M Cable 3.5 Open Array Antenna [DRS12AX/3]

$5,970.00
SKU:
83543
Condition:
Brand New
Availability:
In Stock
30-Day Returns Policy
Authorized Dealer
Free Shipping*
Financing Available

Description

DRS12AX 12kW UHD Digital Radar with Pedestal 15M Cable & 3.5' Open Array Antenna

Pushing the boundaries of what is possible with conventional Radar technology, DRS12AX "X-Class" marks yet another leap forward for Furuno. Improved in almost all aspects, DRS12AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS12AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Features:

  • 12kW Power Output
  • Enhanced target detection, both short and long range
  • Minimum detection range of just 20 m
  • Fast Target Tracking™
  • Bird Mode
  • Pedestal unit 20% lighter than previous unit, updated with new, low noise motor
  • No PSU required, decreasing total costs
  • Easy installation without the need to open pedestal unit
  • Smart-connector cable
  •  3.5ft Antenna
  • 15M Cable
  • 96NM Range
  • Compatible with NavNet TZtouch, NavNet TZtouch2 and TZtouch3 (not compatible with NavNet 3D or earlier NavNet models)
  • The DRS12AX is a 24V system; a converter will be required for use with 12V power systems
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Power - Output: 12kW
  • Array Size (Inches): 42"
  • Box Dimensions: 8"H x 17"W x 17"L WT: 64.6 lbs
